How do I connect my Mac to an HDTV or projector?

A: Connecting your Mac to an HDTV or projector is easy. First look at your Mac to see what type of video output you have– Mini DisplayPort, DVI, mini DVI, or micro DVI. Then check the input options on the device you are signaling to. On an HDTV, this may be HDMI or DVI; or on a projector, this may be VGA or DVI. After you determine the output and input, you can shop the Apple Store for the cable you need.

How do I connect my Mac to a display?

A: All current Mac computers come with a Mini DisplayPort. If you have an Apple LED Cinema Display, it has a cable that plugs into your Mac. If you have another monitor or TV, you can still use the same port, but you will need a MiniDisplay Port adapter. Check your display's ports to determine the type of adapter your model requires. Popular adapters include Mini DisplayPort to DVI, Mini DisplayPort to HDMI, Mini DisplayPort to VGA, and Mini DisplayPort to Dual-Link DVI.

Do I need an HDTV?

A: If you have Apple TV or one of the currently shipping Mac computers, you will need an HDTV in order to play your content. All shipping Mac computers have the ability to connect to a high-definition television, projector, or monitor.

How can I make sure I get the best-quality picture?

A: Use a high-quality digital cable such as a DVI, Mini DisplayPort, or HDMI cable to make sure that you receive the best-quality picture.

What is HDMI?

A: HDMI, or High-Definition Multimedia Interface, is a compact audio/video interface used to transmit uncompressed digital data. The main advantage of HDMI is its ability to transfer HD video as well as up to 8 channels of digital audio over a single cable.

How do I stream audio from my Mac to my TV or stereo receiver?

A: There are two main ways to wirelessly stream your digital content.

One way is to use an Apple TV. It connects to your TV or receiver and streams a variety of iTunes-stored media content – including movies, music, photos, podcasts, and TV shows – to your TV.

To stream only audio, use AirPort Express. It's a wireless router that can send audio from iTunes to your TV or stereo. Current Mac computers support both analog and digital audio out through the 3.5mm mini-jack (3.5mm). Check the audio-in capabilities of your TV/stereo receiver. Then use the appropriate cable to connect your TV or stereo to AirPort Express. The most common solutions are either a mini-jack (1/8-inch) to RCA cable or a mini-jack optical (1/8-inch) to Toslink cable.

Can I record TV on my Mac?

A: Yes. You can record over-the-air broadcasts using the Elgato EyeTV Hybrid TV Tuner. This device allows you to watch and record live TV right on your Mac. Simply plug the mini TV tuner into an available USB port. Then connect the tuner to your TV or cable box using the composite/S-video cable provided. You can even transmit your recorded broadcasts to your iPhone and iPod touch using the EyeTV app.

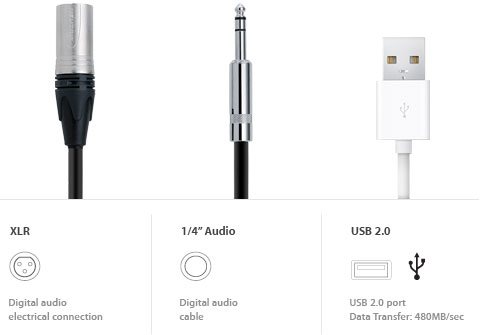

How do I know if I need an external audio interface?

You will likely need an external audio interface if you are plugging in multiple music devices at the same time, using instruments with audio-specific connections like XLR or MIDI, or connecting to a set of professional speakers.

How do I use a MIDI instrument?

A: Mac OS X recognizes MIDI devices via USB or FireWire. If your device does not support these connections, an external audio interface device with MIDI connection will be necessary.

How do I use a USB instrument?

A: Simply plug your instrument into a USB port on your Mac and open an audio program such as GarageBand or Logic. Your Mac should recognize the instrument automatically. If it doesn't, check with the manufacturer to determine if a specialized driver is required.

How do I use a 1/4-inch device?

A: Use a 1/4-inch to 1/8-inch adapter to plug it into your Mac. Certain devices may require additional power to function. If that is the case with your instrument, you will need an external audio interface device with dedicated Pre-Amp connection.

How do I use a microphone?

A: It depends on the connection. Microphones that connect via USB can be plugged directly into the port on your Mac. Microphones that use non-USB connections – like XLR or 1/4-inch – will require an external audio interface device with dedicated Pre-Amp connection.

How do I use an XLR device?

A: Plug your XLR device into a digital audio interface device. Then connect that interface to your Mac via FireWire or USB.

How do I hook up external speakers?

A: Most speakers will connect through the USB or 1/8-inch audio out port on your Mac. Professional sets that use XLR or 1/4-inch connections require an external audio interface device to convert the digital signal from your Mac to the analog configuration of your speakers. On many newer Mac computers, the 1/8-inch jack doubles as a mini TOSLink interface, allowing for digital optical out. Digital optical out is popular on many home cinema and audiophile setups with a dedicated amplifier.

What are the basics?

A: All Mac computers include USB 2.0, Ethernet, and FireWire 800 ports (except for MacBook, which does not include FireWire). Most external hard drives support one or more of these interfaces and can be connected directly to a Mac. If your external device uses FireWire 400, you will need a FireWire 400 to 800 adapter cable. Mac Pro and the 17-inch MacBook Pro also support eSATA connections after a third-party PCI Express Card is added.

How do I get a hard drive to work with Time Machine?

A: Connect an external hard drive to your Mac via FireWire or USB. Once the drive is detected, Time Machine will ask if you would like to use the device as a backup drive. Select "Use as a Backup Disk" to confirm and set your preferences. Time Machine takes care of the rest – initiating hourly, daily, weekly backups until your external drive is full.

How do I share a hard drive with other computers?

A: All Mac computers are designed to share drives seamlessly using Sharing in System Preferences. They can also read the contents of a PC-formatted disk. However, a PC can read the contents of a Mac formatted drive only if third-party software is included. If you want to transfer files between your Mac and a PC more easily, format the external drive as FAT32 – a file system that is both Mac- and PC- compatible.

How should I disconnect a hard drive from my Mac?

A: Drag the drive icon to the trash or click the eject button in the Finder menu to disconnect the hard drive. When either the icon or the button disappears, it is safe to physically remove the hard drive from your computer.

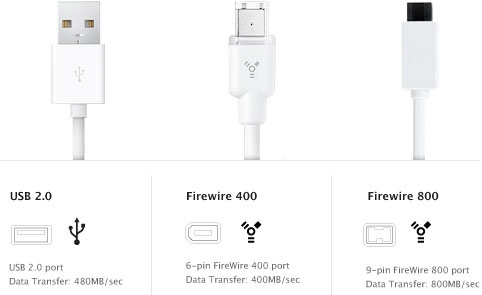

Do different interfaces transfer files at different speeds?

A: Yes. USB 2.0 transfers data at a maximum of 480 Mbit/sec. FireWire 400 and FireWire 800 transfer at a rate of 400 Mbit/sec and 800 Mbit/sec, respectively. eSATA transfers data at up to 3 Gbit/sec.

What are my networking options?

A: Mac computers have industry-standard networking options. Most ship with Gigabit Ethernet and 802.11n Wi-Fi networking capabilities. If you order a Mac Pro, you have the option of adding a wireless card for this functionality. The only current Mac that does not have an Ethernet port is the MacBook Air. If you order a MacBook Air, you have the option of adding an adapter that delivers a 10/100 Ethernet connection through your USB port.

What is the difference between AirPort, Wi-Fi, and 802.11?

A: There is no practical difference between the three. 802.11 is a standard set by the IEEE committee. This standard covers the 2.4GHz, 3.6GHz and 5GHz frequency bands. These standards ensure that your Mac will work wherever there is "Wi-Fi". AirPort and AirPort Extreme simply refer to Apple's line of networking products that are based on this wireless standard.

What do I need to set up a wireless home network?

A: All you need is a Mac with wireless capability and an AirPort base station – either an AirPort Extreme, AirPort Express, or Time Capsule.

How can I share files over my network?

A: You can set up your Mac to share files with any computer on your network simply by enabling file sharing in your System Preferences (click on Sharing to start the process). Once sharing is enabled, you can choose what to share – and with whom – by assigning permissions.

How do I connect to a printer?

A: If you only want to print, simply connect your Mac to the printer and add it to your list of available printers. Most USB printers will automatically be added once they are plugged in. Other printers will ask you to complete a few easy steps in order to add the printer. Mac OS X includes software that lets you print to most machines. If you need additional software for a printer, your Mac will alert you. You can then download and install the software to complete the setup.

Is there more than one way to connect a printer to my Mac?

A: With a Mac you have several ways to connect to a printer. You can use the standard method of connecting the printer directly to your Mac with a USB or FireWire cable. You can also add a printer to your network and print via Ethernet. Or add a printer with built-in wireless capabilities to your wireless network. Or connect a printer via USB to an AirPort Express, AirPort Extreme, or Time Capsule and print wirelessly.

Can I share a printer with other computers?

A: Mac OS X allows you to share any printer over a network so long as your Mac is connected and printer sharing is enabled.
